OVERVIEW

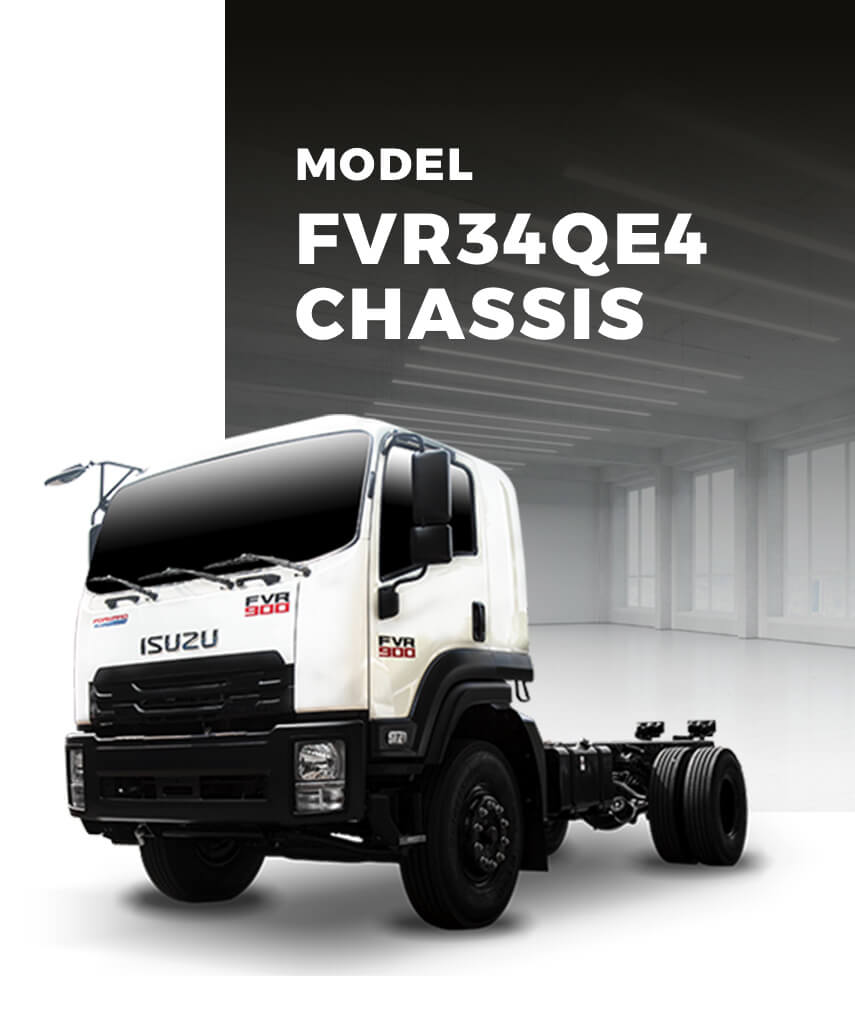

model ISUZU TRUCK - FVR34QE4 - Chassis

Gross vehicle mass 16,000 (kg)
Overall Dimension 9,460 x 2,485 x 2,880 (mm)
Max. power 241 (177) / 2,400 (Ps(kW) / rpm)
Emission EURO 4
Manufacturers Name Isuzu Vietnam Co., Ltd
Manufacturers Address 695 Quang Trung Street, Ward 8, Go Vap District, Ho Chi Minh City
Origin Vietnam
Certification number of Approval (TA) 1358/VAQ09 – 01/17 – 00
Suggested retail price 1,314,654,545 VNĐ

* Applied for cabin chassis. (Price is included VAT)

ENGINE

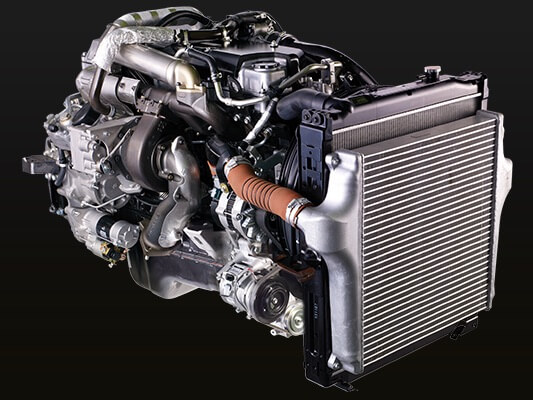

Powerful common rail engine

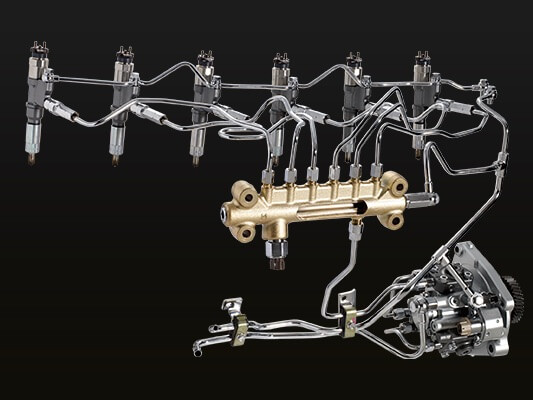

High-pressure common rail injection system

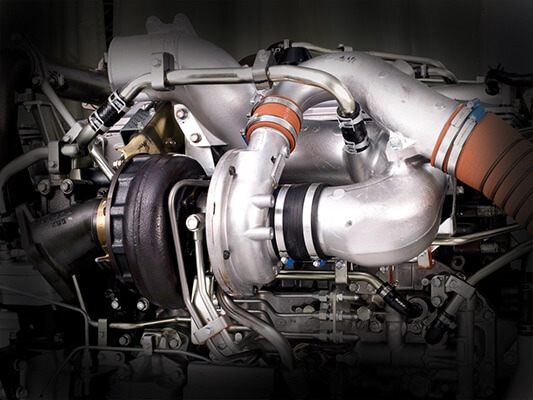

Variable geometry turbo system

performance

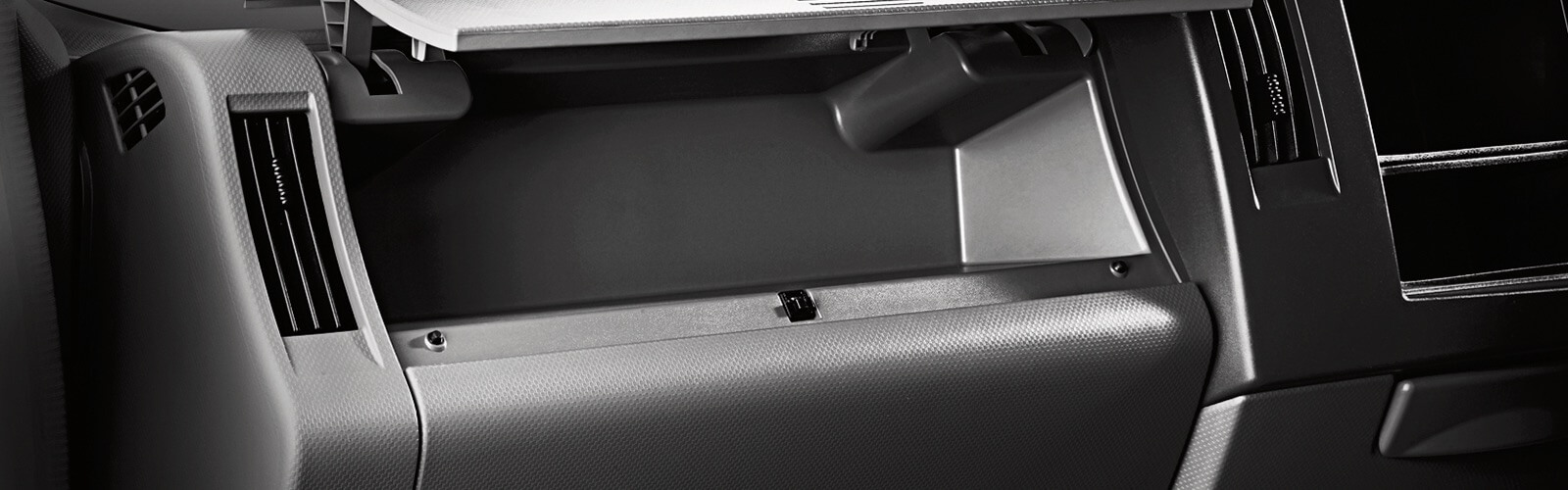

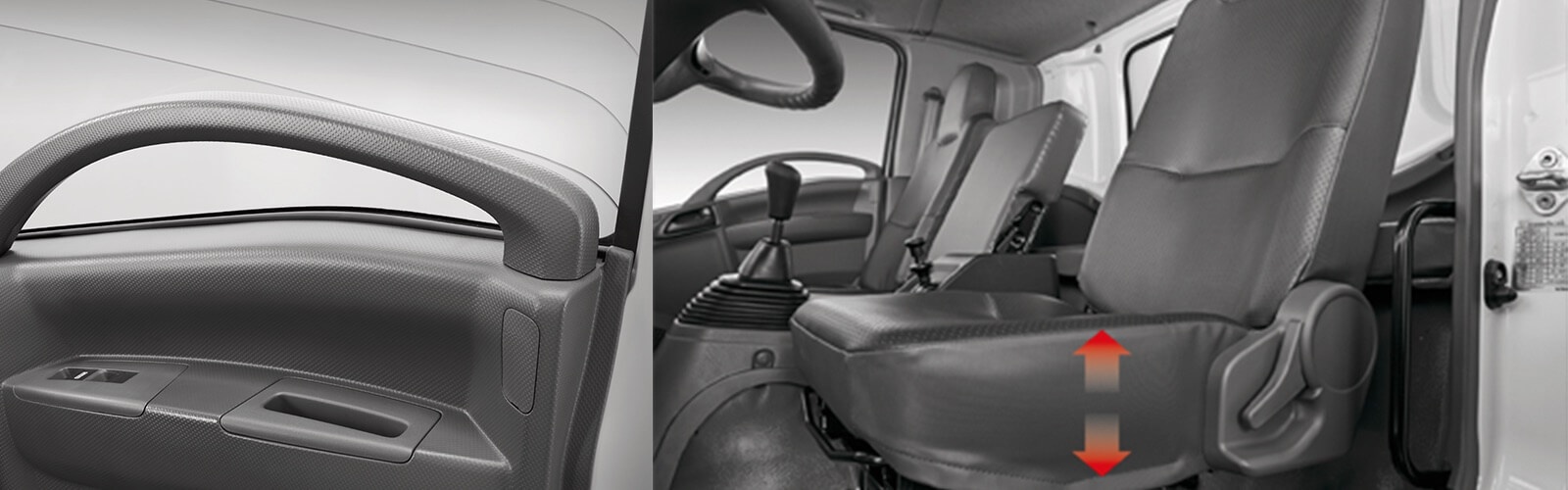

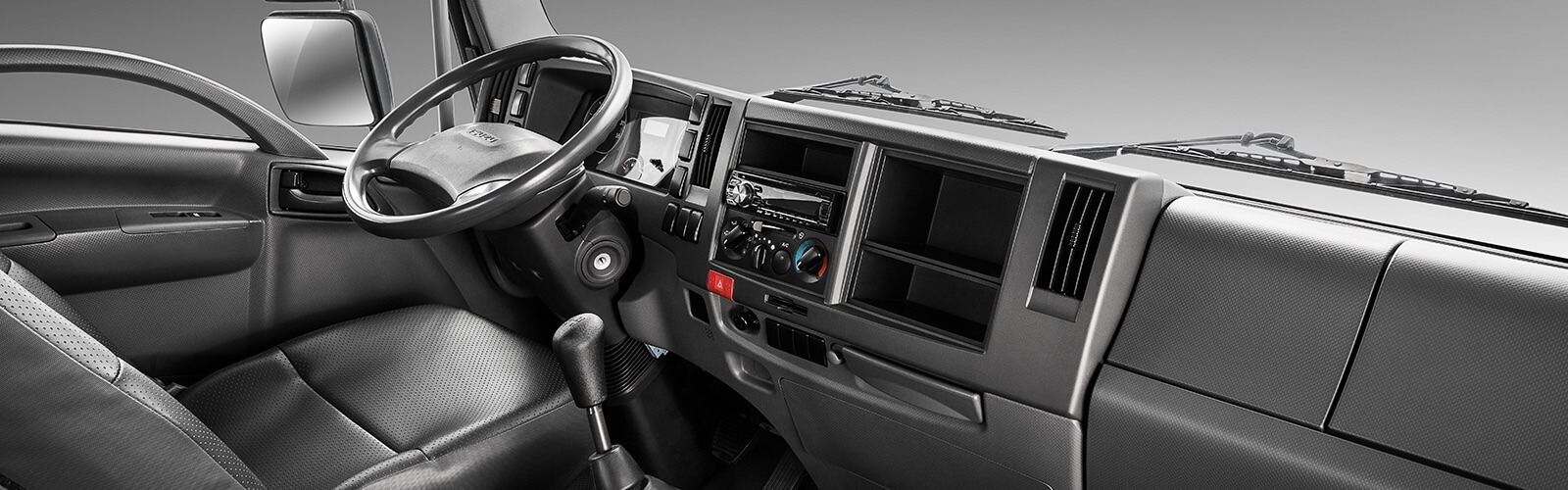

Interior

specification

MASS
DIMENSIONS
ENGINE & TRANSMISSION
PERFORMANCE
BASIC SYSTEMS
Equipments
Gross vehicle mass kg 16000
Kerb masst kg 5255
Number of seats person 3
Fuel tank Liter 200
Overall Dimension (LxWxH) mm 9460 x 2485 x 2880
Wheelbase (WB) mm 5560
Front – Rear treat (AW / CW) mm 2060 / 1850
Ground clearance (HH) mm 265
Front – Rear over hang (FOH/ROH) mm 1250 / 2650
Model 6HK1E4NC
Type Common rail, turbo – intercooler
Emission EURO 4
Displacement cc 7790
Bore and Stroke mm 115 x 125
Max. power Ps(kW) / rpm 241 (177) / 2400
Max. torque N.m(kgf.m) / rpm 706 (72) / 1450
Transmission MZW6P
6 Forward & 1 Reverse
Max speed km/h 94
Gradeability % 31
Steering system Recirculating ball with hydraulic assisted

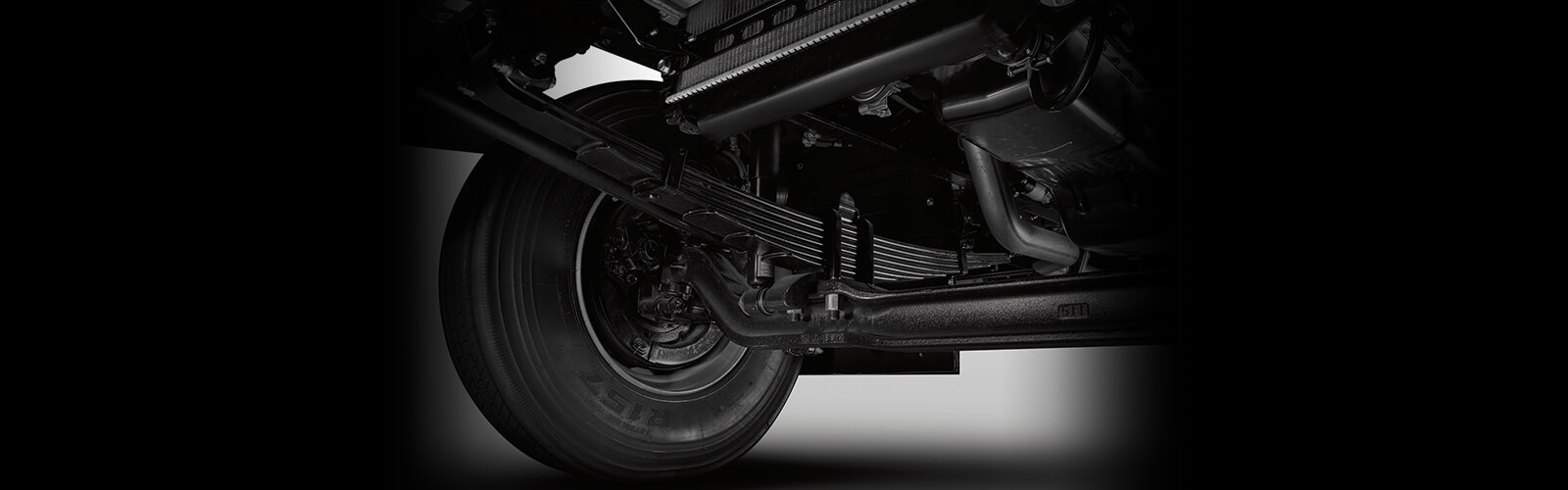

Suspension system front – rear Dependent, leafspring, shock absorber

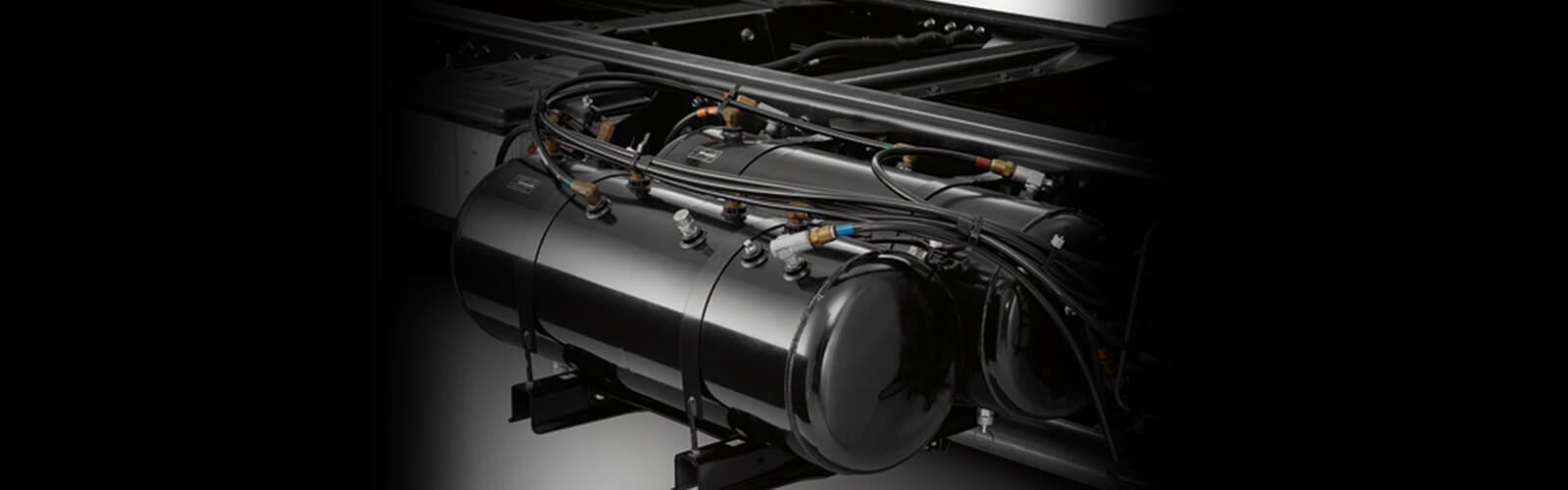

Brake system front – rear Drum, full-air dual circuit
Tire size front – rear 10.00R20
Generator 24V-60A
Battery 12V-65AH x 2
  • 2 sun visors driver & co-driver
  • Power window & central door lock
  • Inside guard bar
  • Cigar lighter
  • Air conditioner

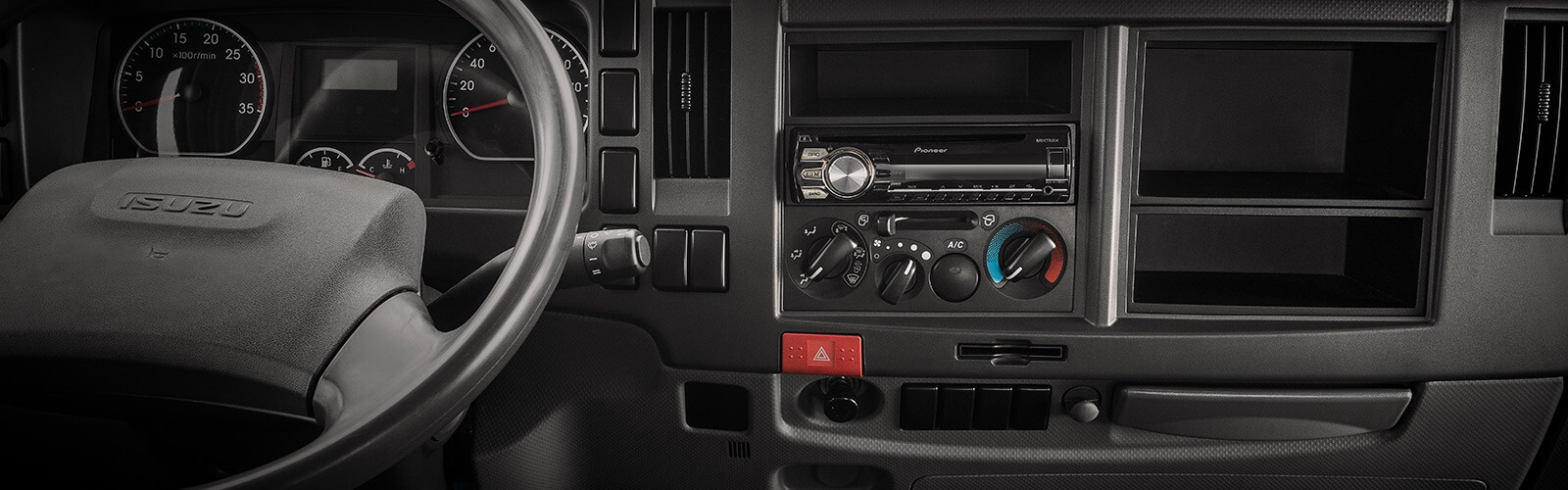

  • USB-MP3, AM-FM radio
  • 3-point seat belts
  • Reversing warning buzzer
  • Cooler and defroster
  • Exhaust brake
  • Fog lamps

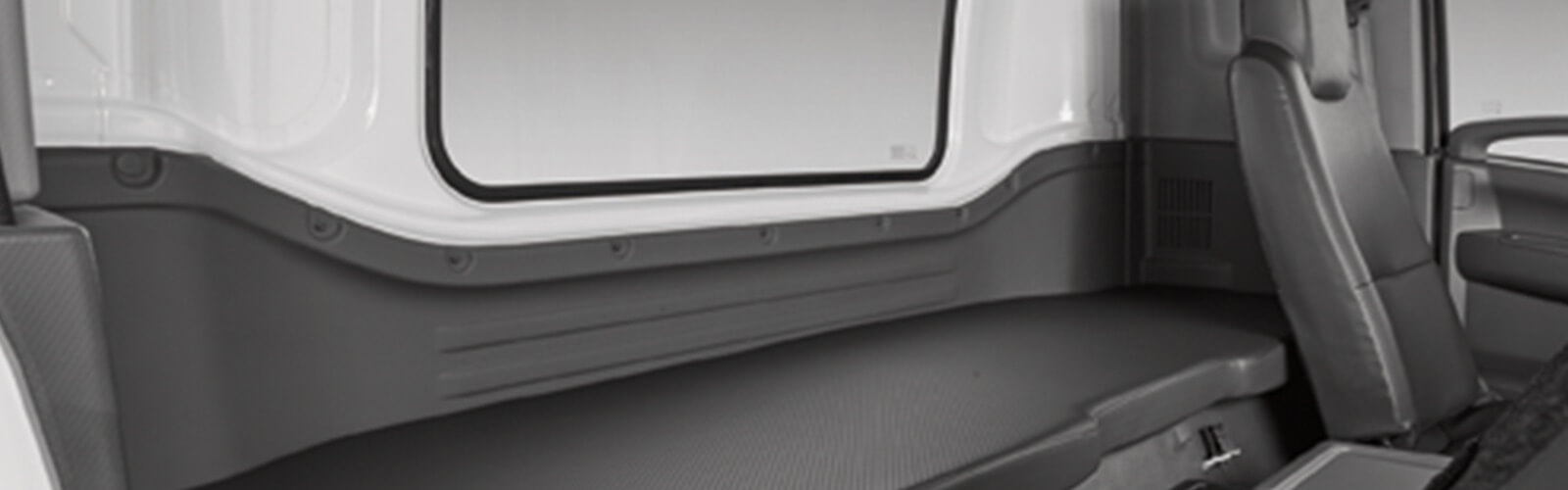

  • 1 bed (Model FV)
